Boxwall: Quick-Deployment Flood Barriers

Updated: Aug 4, 2020

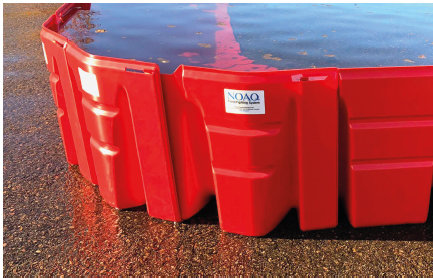

The NOAQ Boxwall is a freestanding temporary flood barrier and one of two flood protection products supplied by TCFEB. It is designed specifically for the urban environment but works just as well on lawns and other surfaces as it does on asphalt streets.

A NOAQ Boxwall BW52 is able to dam 50 cm of water and is self-anchoring. It is automatically ballasted by the own weight of the flood water. The higher the water rises, the harder the barrier is pressed firm against the ground. Utilizing the weight of the water, the barrier itself doesn’t need to be heavy. Individual ”boxes” weigh only 6,0 kg each and the barrier not more than 6.7 kg per meter. This makes it easy to use, and very fast. Two people can build 200 linear metres of boxwall in an hour.

A Boxwall is built by snapping the boxes together. No tools are needed. Gradual curves are made by connecting the boxes at a slight angle, and for corners there are specific corner boxes.

The Boxwall can also be used during a flash flooding event to divert water away from vulnerable areas. A number of boxes are put in the flowing water and will stick directly to the ground.

The boxes are stackable, which means they require very little space for storage and transport. 26 boxes (23 m) fit on a standard pallet, and a 40’ container can take 1.1 km of Boxwall.

Pairs well with FloodSax Sandless Sandbags (also supplied by TCFEB).

Damming ability: 50 cm (20”)

Dimension of boxes (lxwxh): 980 x 680 x 530 mm

Effective length: 900 mm (3’) per box

Weight: 6 kg (13 lb) per box

Speed of deployment: 200 m per hour

Minimum curve radius: 1 m (in both directions)

Material: Polypropylene

Temperature resistance: -30° – +90°C

Download product sheet:

Download PDF • 2.49MB

Contact us today for additional information.
